Battery Abuse Test Center
The main task of a Automotive Battery Abuse Test Center is, to bring E-Vehicle batteries, fuel cells, to their limits in a targeted, real time monitored, controlled reproducible manner, under realistic stress tests in a test laboratory.
Project support within the development and acceptance testing of batteries with their components, to obtain, for example, type approval, for series production.
The main components of a Battery R&D-, quality-, safety-center, are e.g., various test benches, incl. climatic- and altitude-simulation chambers, for targeted, controlled, reproducible, artificial real-time battery agening, under a wide variety of conditions, e.g. cold, heat, altitude, humidity, with regard to their influence on charging and discharging processes.
Electrothermal and mechanical tests increase the reliable operational safety,when used, for example, in vehicles in daily road traffic and to ensure the sustainable quality of the product itself and it‘s application.
Using special configured AIP testing systems/techniques (hardware and automation), infrastructure, safety concepts, batteries (at cell-, module-, and pack-level) are subjected to a wide range of standard-defined stress tests (abuse tests) [e.g. ECE R 100], in the laboratory, prior to their series use in vehicles, realistically and reproducibly, e.g. to obtain series approval.

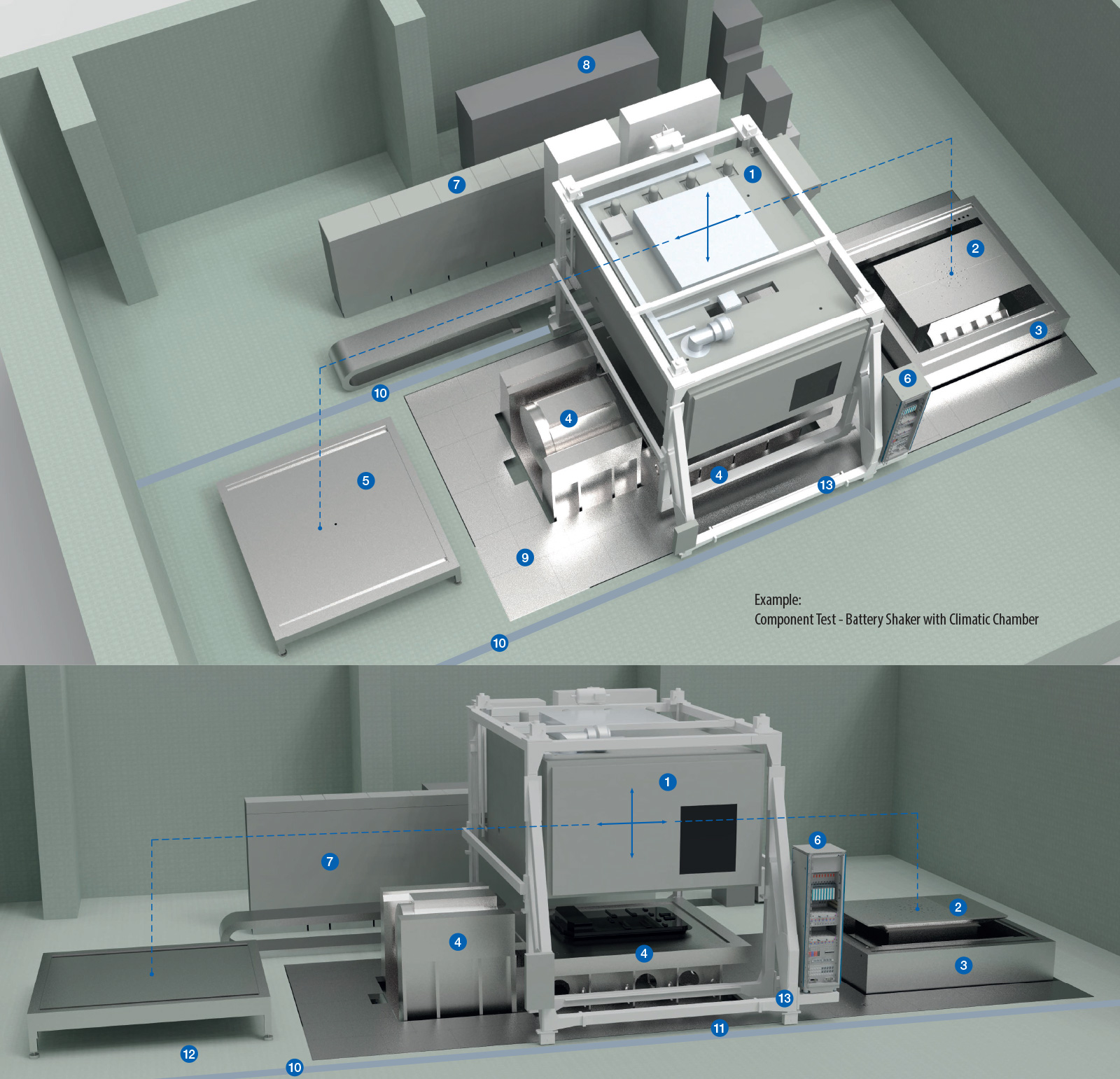

- Climate Chamber
movable in X-Y-Z direction
- The movable climate chamber can be remote controlled positioned to the left and right ... to the DOT test setup, parking platform and to the DOT hosting battery shaker.
- Can be lowered above the (DOT) test specimen (battery), temperaturesealed connected to the testcell floor, during operation.
- Battery Shaker (B)
Shaking in Z - direction
- Battery Shaker (B)
Shaking in X-Y - direction
- Battery Shaker (A)
Shaking in X-Y - direction
incl. installed DUT (Battery)
- DUT Test setup platform
DUT parking and for preparation
- METRON-Scope
Control unit
- BattSim
Battery simulator
- Power supply cabinets
- Shaker pit decking
DUT parking and for preparation
- Test cell floor embedded travel rails
to position the movable traversing unit in X-Y - direction
- Test bench floor
- Test cell floor
- Movable traversing unit
hosting the climate chamber and the METRON Scope system

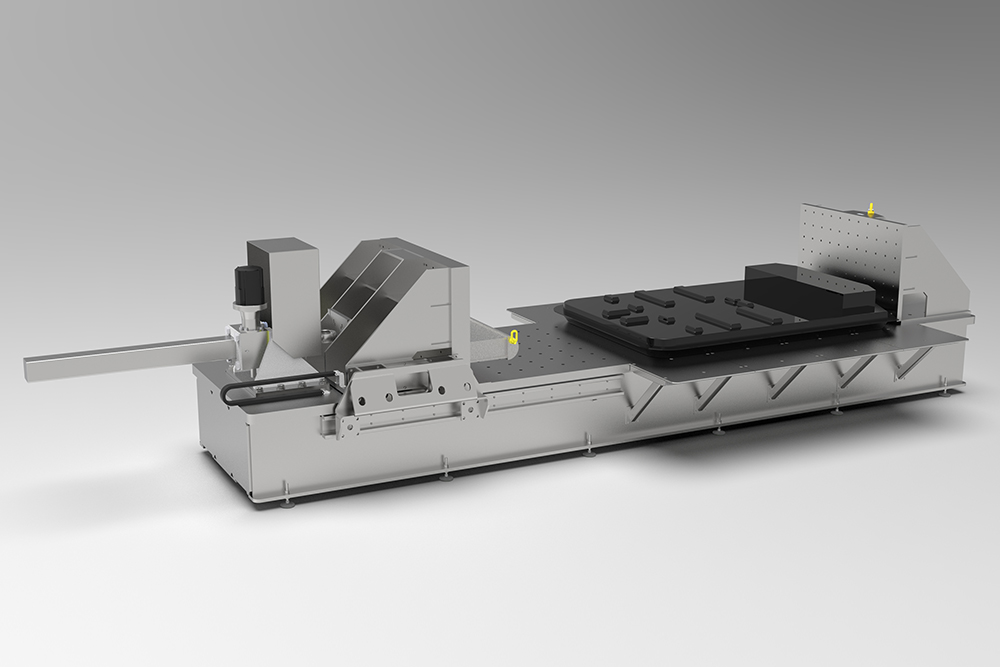

BattSqueeze
Automated controlled battery squeeze unit
